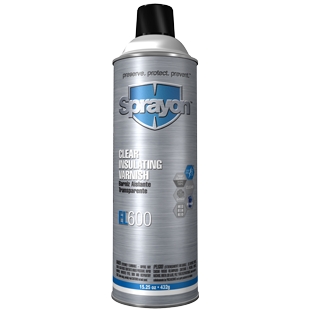

Sprayon Clear Insulating Varnish

Clear Insulating Varnish Features:

• Thoroughly penetrates old and new materials
• Air-dries faster than most insulating aerosols (10-15 minutes)
• Tack-free in 60 minutes
• Provides high adhesion, high arc resistance and non-tracking properties
• For use as an insulating varnish in Class F applications, as well as a finish coat
• Resists abrasion and wear
• Contains no chlorinated solvents
• Dielectric strength: up to 2,200 volts
• Equipped with EZ TOUCH® Standard Nozzle

Uses: Motor windings, transformers, commutator ends, sealing electrical and electronic components, field coils, armatures, stator windings, rings and frames, bus bars and switchboard parts. Ideal for general coating, impregnating and insulation for electrical and electronic products, particularly small field and magnet coils, and inside walls of control boxes.

Clear Insulating Varnish Features:

• Thoroughly penetrates old and new materials
• Air-dries faster than most insulating aerosols (10-15 minutes)
• Tack-free in 60 minutes
• Provides high adhesion, high arc resistance and non-tracking properties
• For use as an insulating varnish in Class F applications, as well as a finish coat
• Resists abrasion and wear
• Contains no chlorinated solvents
• Dielectric strength: up to 2,200 volts
• Equipped with EZ TOUCH® Standard Nozzle

Uses: Motor windings, transformers, commutator ends, sealing electrical and electronic components, field coils, armatures, stator windings, rings and frames, bus bars and switchboard parts. Ideal for general coating, impregnating and insulation for electrical and electronic products, particularly small field and magnet coils, and inside walls of control boxes.
